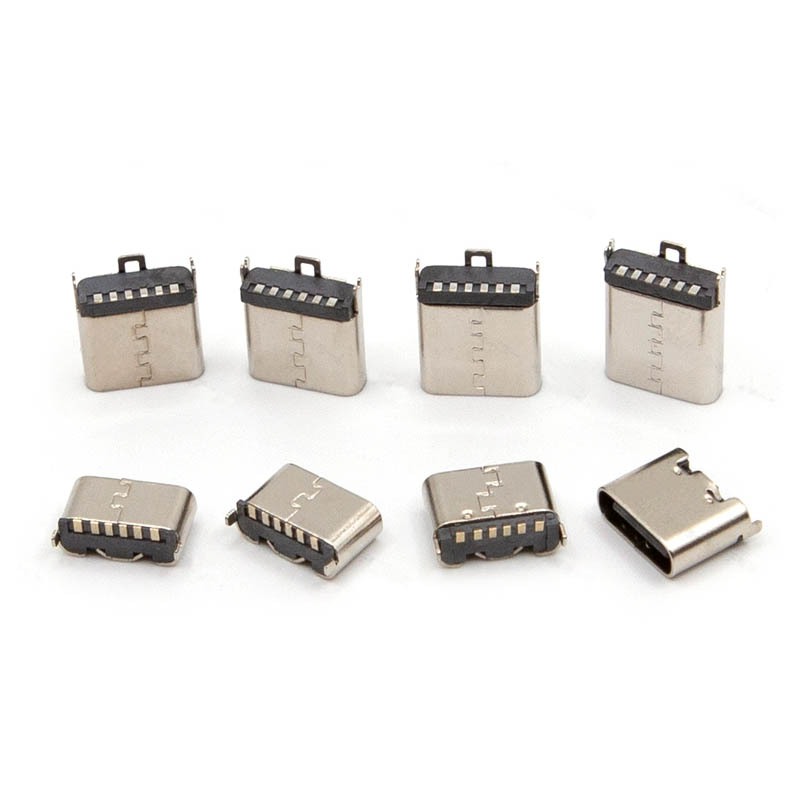

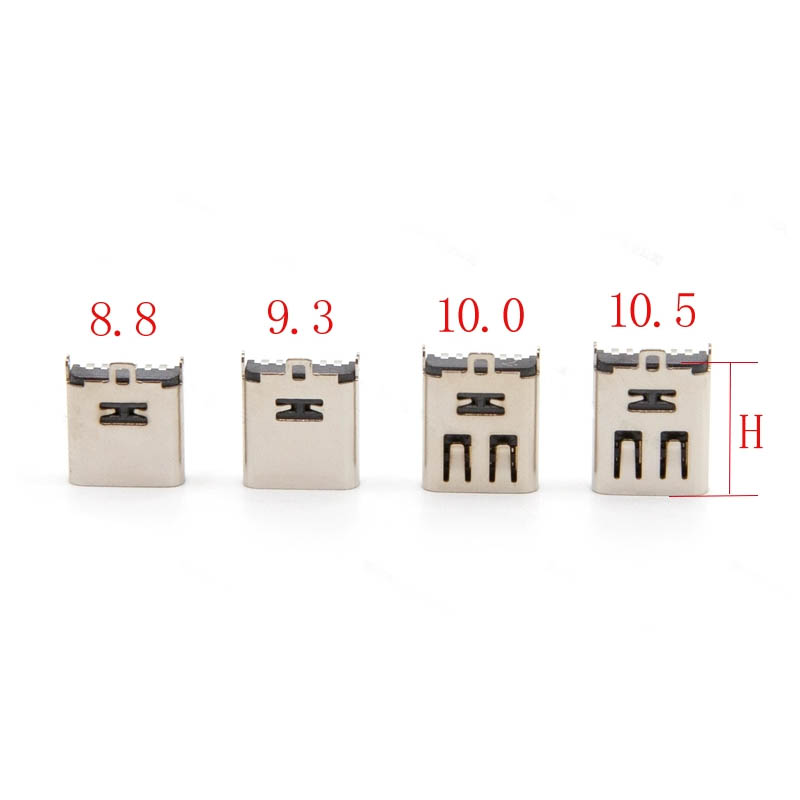

TYPE C Female Head 6 Pins SMT Height 5.0/5.5/6.5/6.8/8.8/9.3/10.0/10.5 Female Connector

1. Material:
1.1 Seal: LCP UL94 V-0
1.2 Terminal: C2680.T – 0.2mm: Guaranteed, Jianjin
1.3 Shell: Stainless Steel 201-H with nickel plating on the surface
2. Electrical Characteristics:
2.1. Contact Area: Maximum contact resistance is 40 mΩ, with an allowable variation of 10 mΩ. Test conditions: Measured at 20 mV and 100 mA. 2.2. Contact Current: 3A For VBUS pin: 1.25A for GND pin: Other pins are 0.25A.
2.3. Rated Voltage: 5V.
2.4. Withstand Voltage: 100VAC
2.5, Insulation Resistance: At least 100 megohms
3. Mechanical Properties:
3.1. Insertion force: 0.5 – 2.0 kg.
3.2. Pull-out force: 0.6 – 2.04 kilograms
3.3. Number of Plug-ins and Unplugs: 5000 times.
4. Working environment: -20℃ to +85℃.
