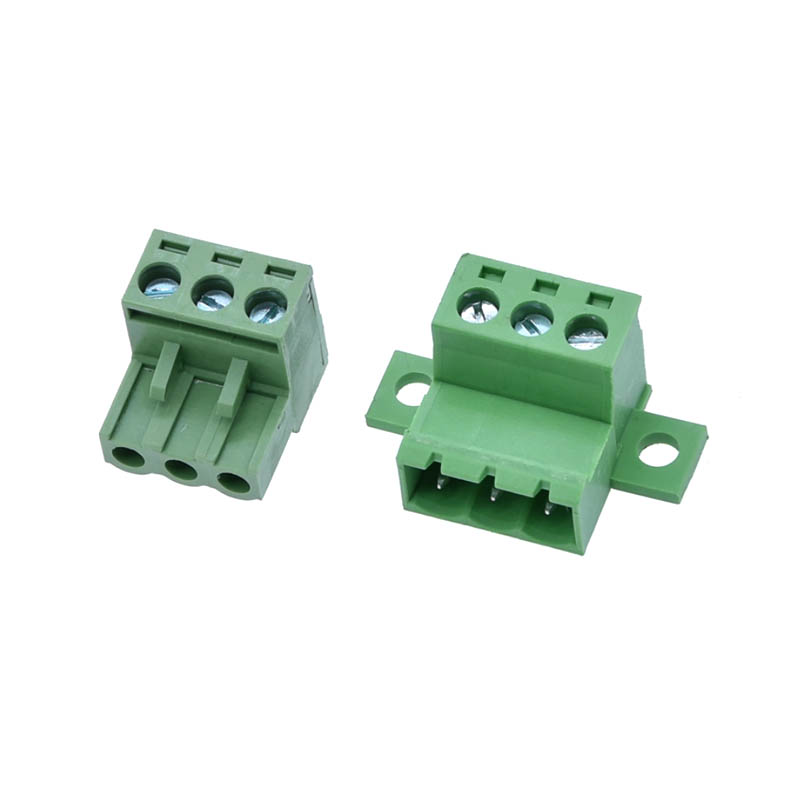

Terminal Block 5.08mm 2EDGWB Solderless Plug-and-Pull 2P 3P 4P 5P 6P-12P

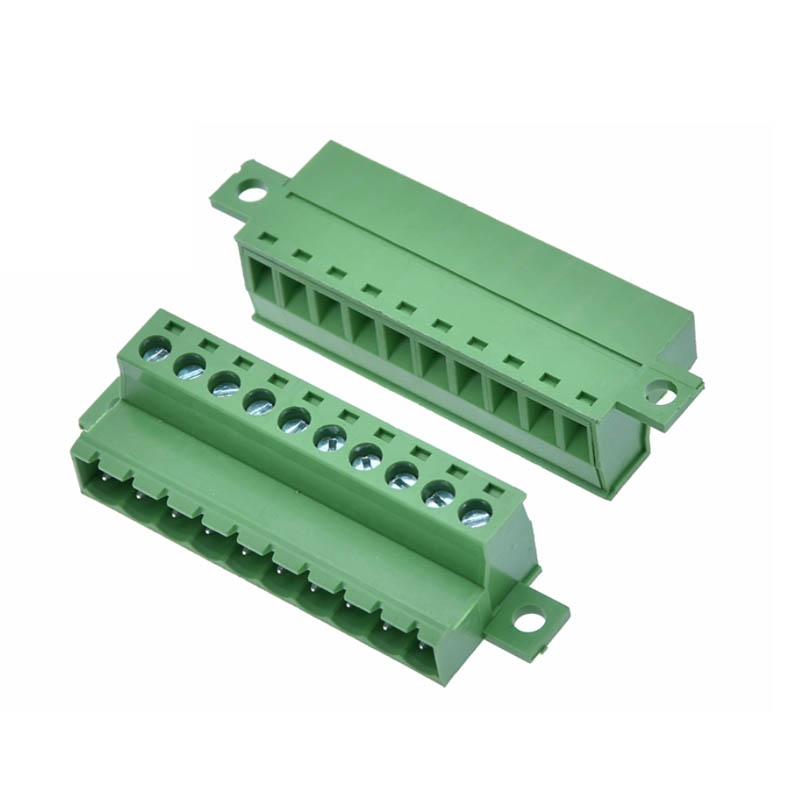

Terminal Block 5.08mm 2EDGWB Solderless Plug-and-Pull 2P 3P 4P 5P 6P-12P - Image 2

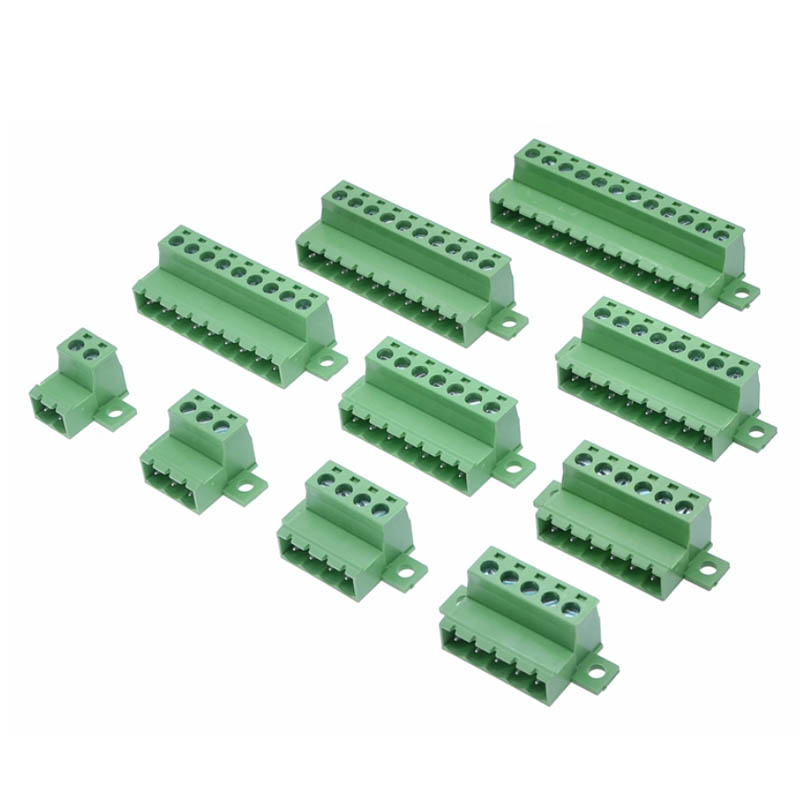

Terminal Block 5.08mm 2EDGWB Solderless Plug-and-Pull 2P 3P 4P 5P 6P-12P - Image 3

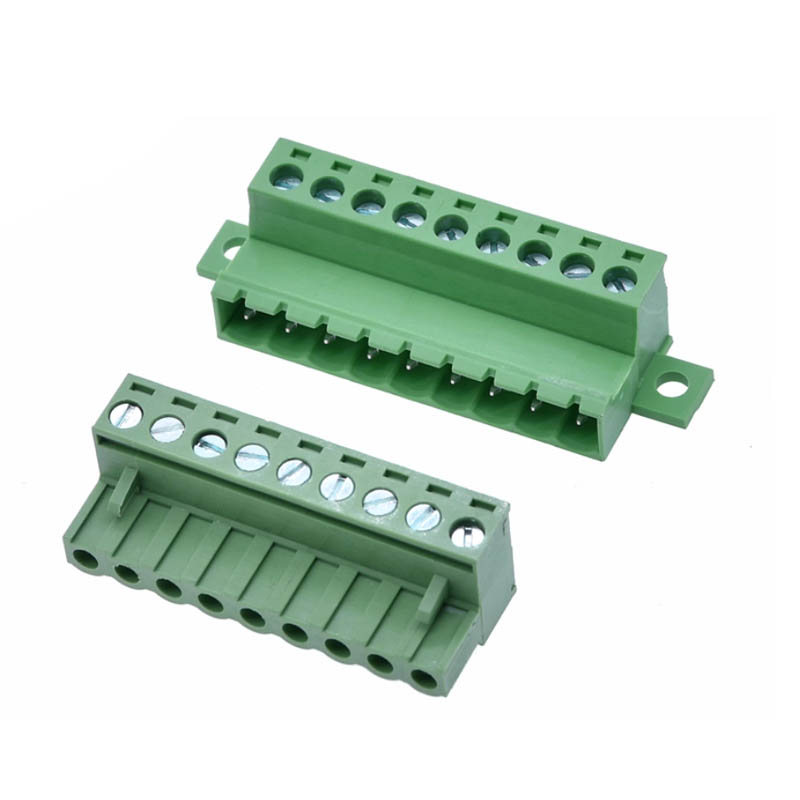

Terminal Block 5.08mm 2EDGWB Solderless Plug-and-Pull 2P 3P 4P 5P 6P-12P - Image 4

Terminal Block 5.08mm 2EDGWB Solderless Plug-and-Pull 2P 3P 4P 5P 6P-12P

Pin: 1*2/3/4/5/6/7/8/10/12/20/40

Pitch: 2.54mm

Electroplating materials: gold, tin, nickel

Certificate:ISO9001, IATF 16949, SGS, ROHS

E-mail: doracao63@gmail.com

+86 17197601206

Product Name:5.08mm 2EDGWB Through Wall Fixed Plug and Unplug Terminal Block
Product spacing:5.08mm 2EDGWB

MATERIAL
Pitch: 5.0/5.08mm
Poles: 2P-22P
Pin header: Brass, Tin plated
Housing: PA66. UL94V-0
ELECTRICAL
rated voitage: 300V
Rated current: IEC:15A UL:10A
Withstanding voltage:AC2500V/1Min
MECHANICAL
Temperature range:-40℃-105℃
MAX soldering:+250℃ for 5 sec.

Contact me and I will customize it according to your requirements~



Whatsapp: +86 17197601206
