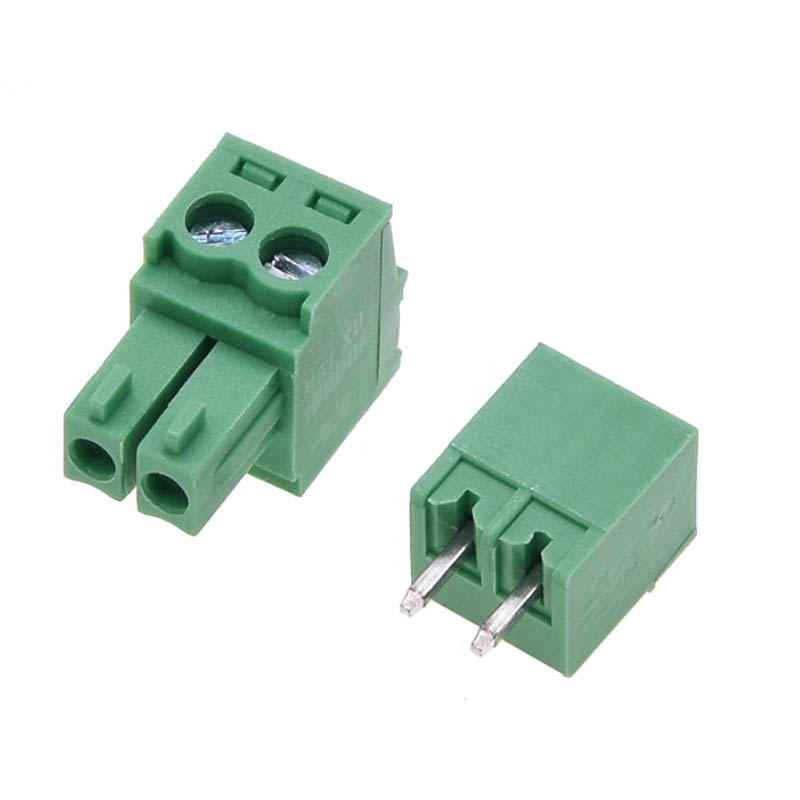

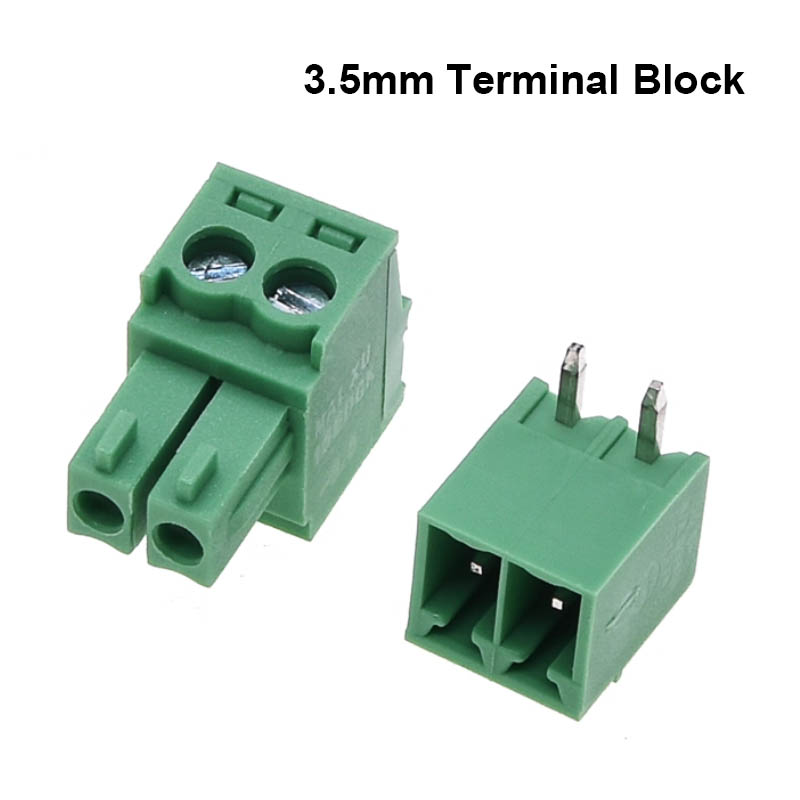

Product Name: 3.5mm 15EDGK PCB Plug 2EDG Bent Straight Pin(Closing the opening)
Product spacing:3.5mm
Rated current: 10A/15A
Rated voltage: 300V/320V
Withstand voltage: 1600V/1 minute
Instantaneous temperature: +200℃ for 5 seconds
Temperature range: -30℃ to +105℃
Applicable wire gauge range: 24 – 12AWG
Suggested stripping length: 7 – 8 mm
Screw/Torque: M2.5/0.4
Conductive material: Copper alloy with nickel plating
Molded part: PA66 UL940V-0
Contact me and I will customize it according to your requirements~
