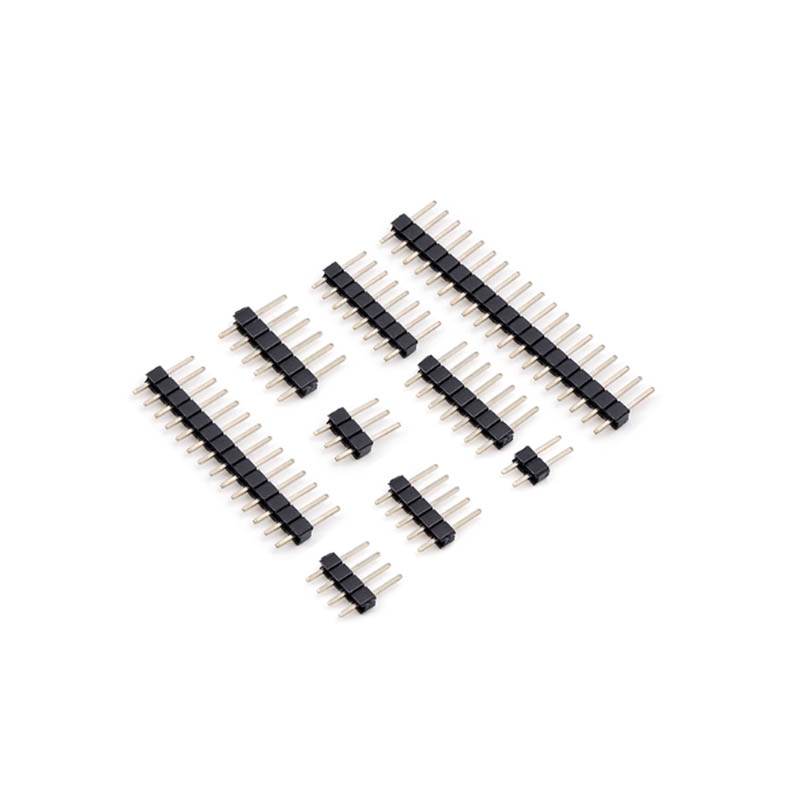

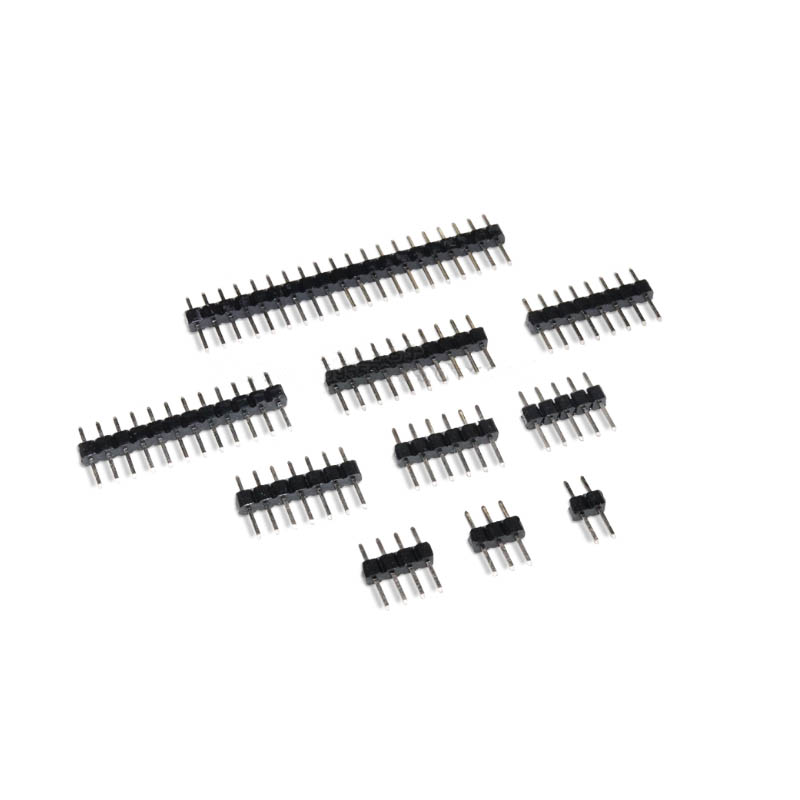

Single Row Pins 2.54mm Pitch 1*2/3/4/5/6/7/8/10/12/20/40 Gold-Plated Pin Header

Pin: 1*2/3/4/5/6/7/8/10/12/20/40

Pitch: 2.54mm

Electroplating materials: gold, tin, nickel

Certificate:ISO9001, IATF 16949, SGS, ROHS

E-mail: doracao63@gmail.com

Product Name: 2.54 Single Row Pin Straight
Product spacing: 2.54mm

NOTES:
Voltage Rating:250V AC/DC

Current Rating:3.0A AC/DC

Dielectric Withstand Voltage:500V AC/minute

Contact Voltage:20ΜΩ Max.

Insulation Voltage:1000MΩ Min

Operation temperature:-40°C to +105° C

Insulator Material:Polyester. UL94V-0

Contact Material:Brass

Contact Plating:AuorSn Plated on Nickel Overall

The height of the plastic can be selected (in millimeters): 1.0mm/1.5mm/2.0mm/Regular 2.54mm
