Single Row 2.54mm Pitch H8.5mmFemale Header 1*2p/3/4/5/6/7/8/9/10P-1x40p Gold-Plated Female Header

Pin: 1*2/3/4/5/6/7/8/10/12/20/40

Pitch: 2.54mm

Electroplating materials: gold, tin, nickel

Certificate:ISO9001, IATF 16949, SGS, ROHS

E-mail: doracao63@gmail.com

+86 17197601206

Product Name: 2.54 Single Row Female Header
Product spacing: 2.54mm

NOTES:
Voltage Rating:250V AC/DC

Current Rating:3.0A AC/DC

Dielectric Withstand Voltage:500V AC/minute

Contact Voltage:20ΜΩ Max.

Insulation Voltage:1000MΩ Min

Operation temperature:-40°C to +105° C

Insulator Material:Polyester. UL94V-0

Contact Material:Brass

Contact Plating:AuorSn Plated on Nickel Overall

The Height of The Plastic:Regular 2.54mm

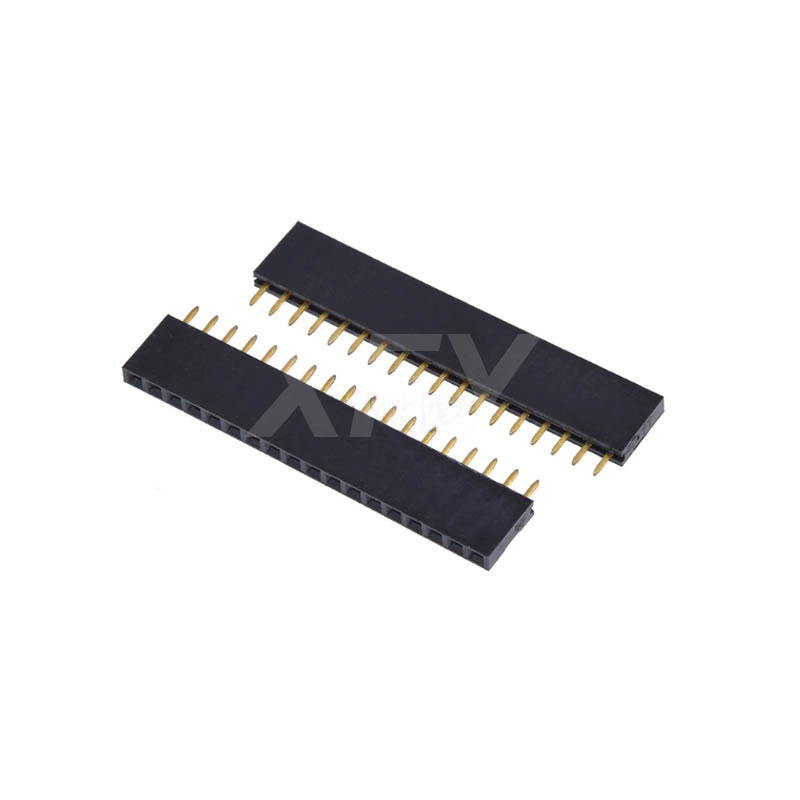

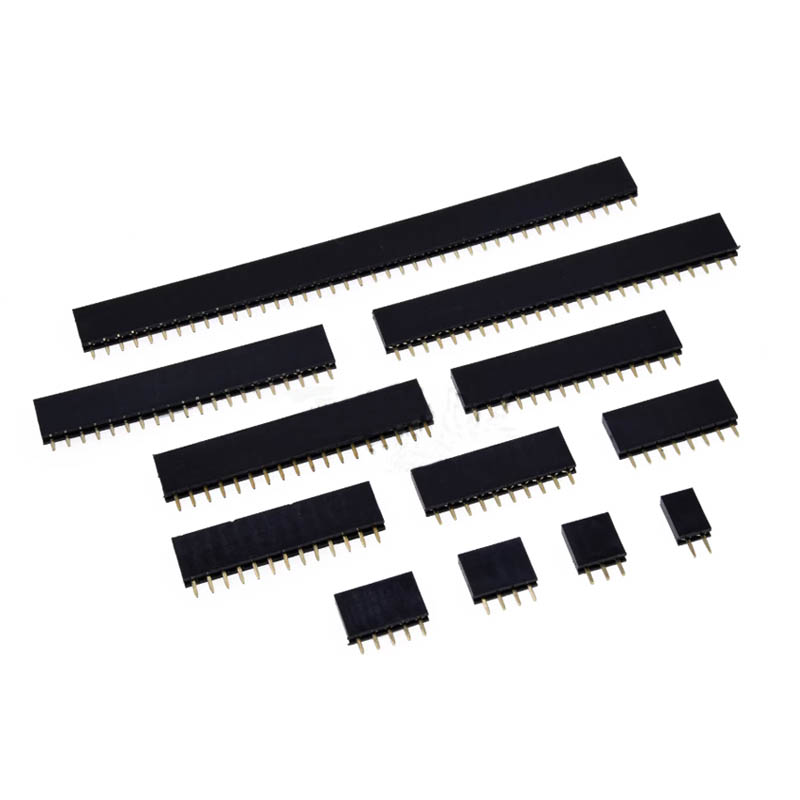

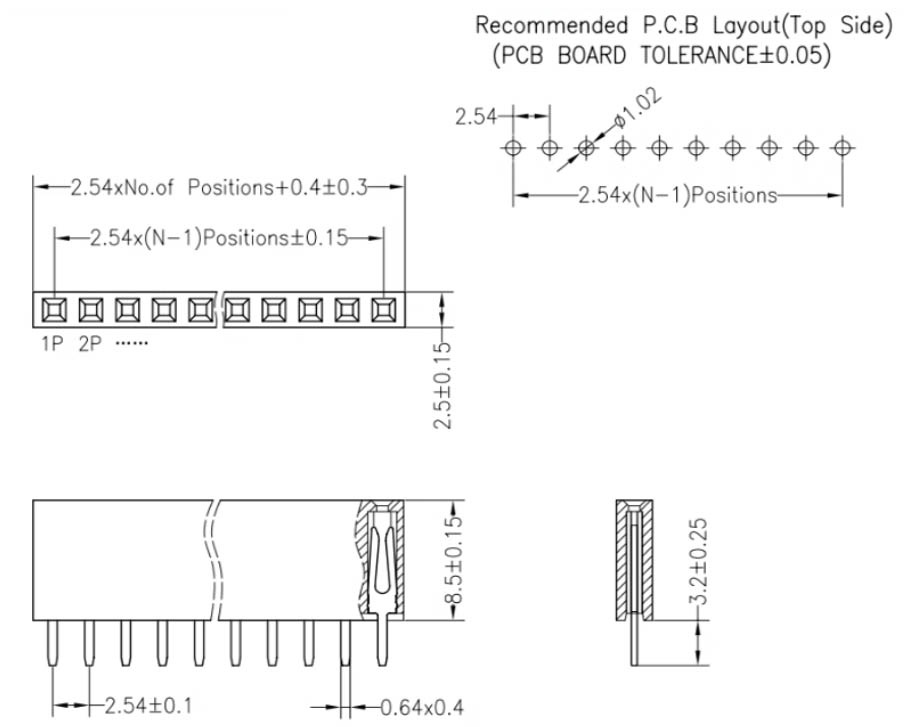

2.54 Single Row Female Header Single Row

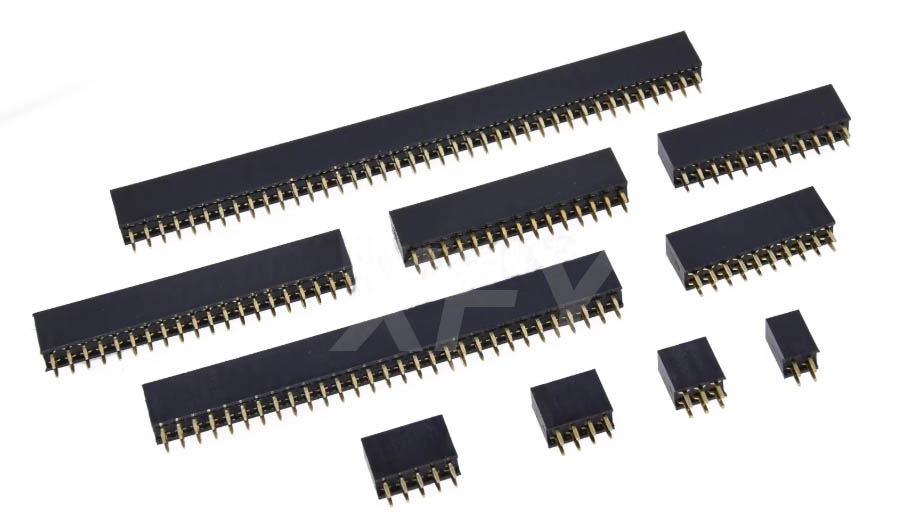

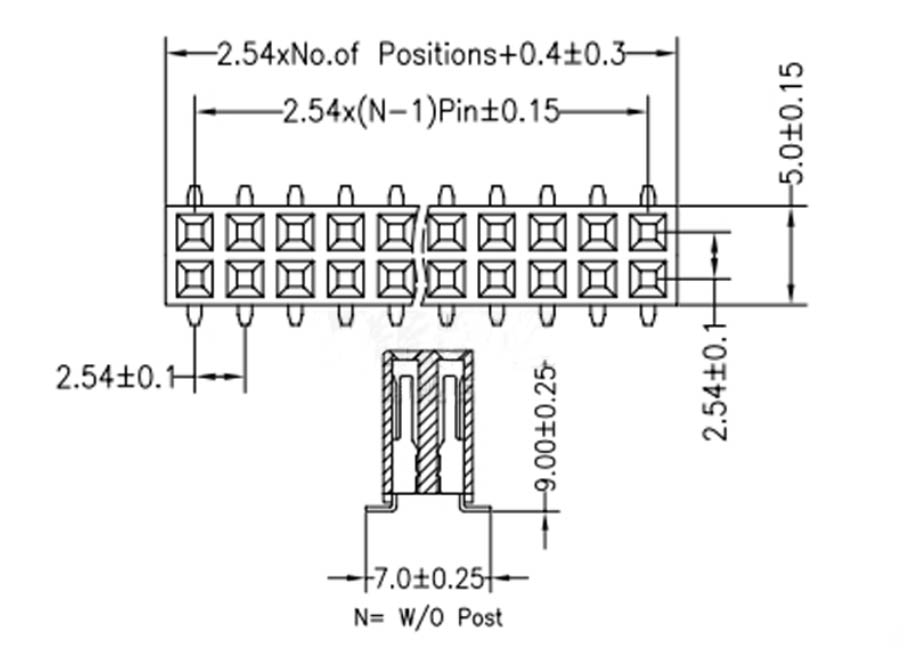

2.54 Double Row Female Header

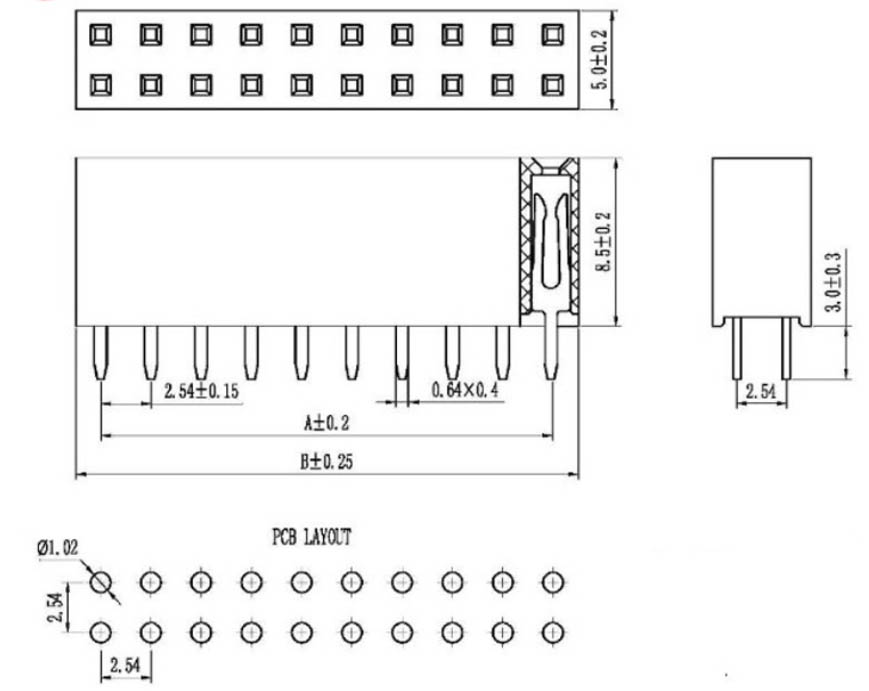

Double

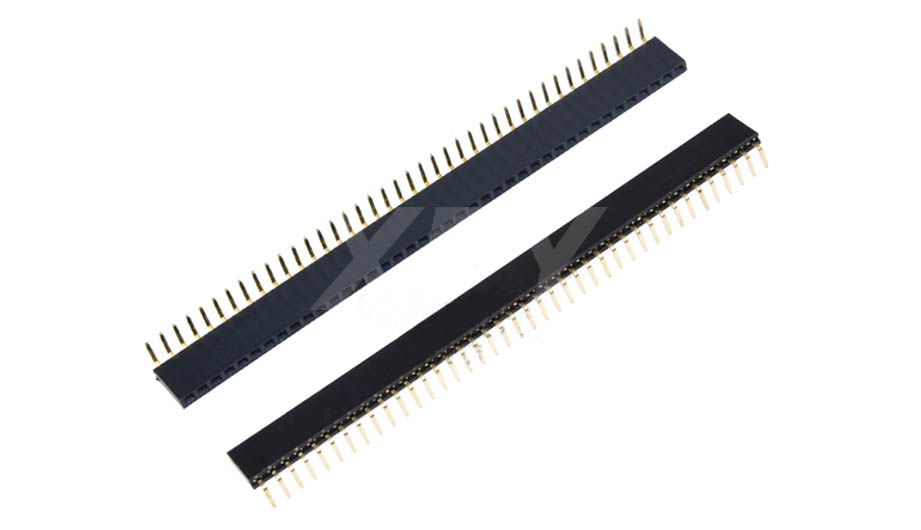

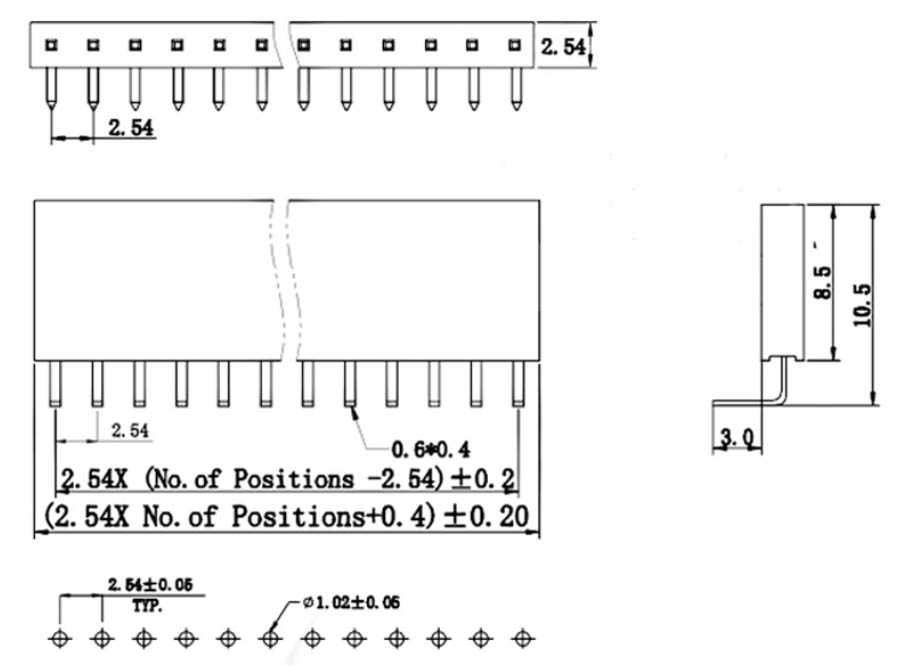

2.54 Single Row Female Header 90 Degrees



90 degrees

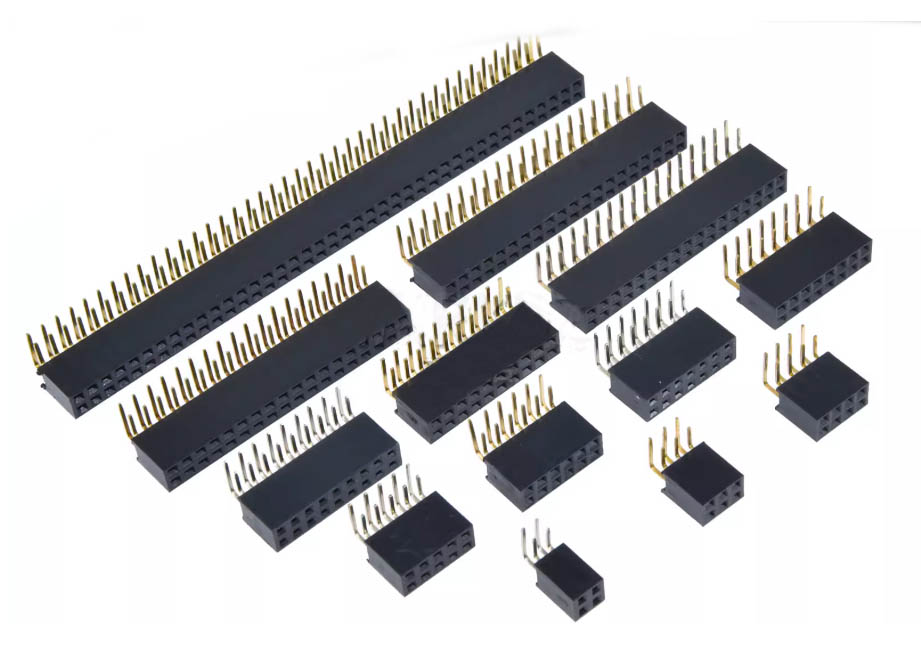

2.54 Double Row Female Header 90 Degrees



2.54 Double Row Female Header SMT/SMD



Contact me and I will customize it according to your requirements~



Whatsapp: +86 17197601206
