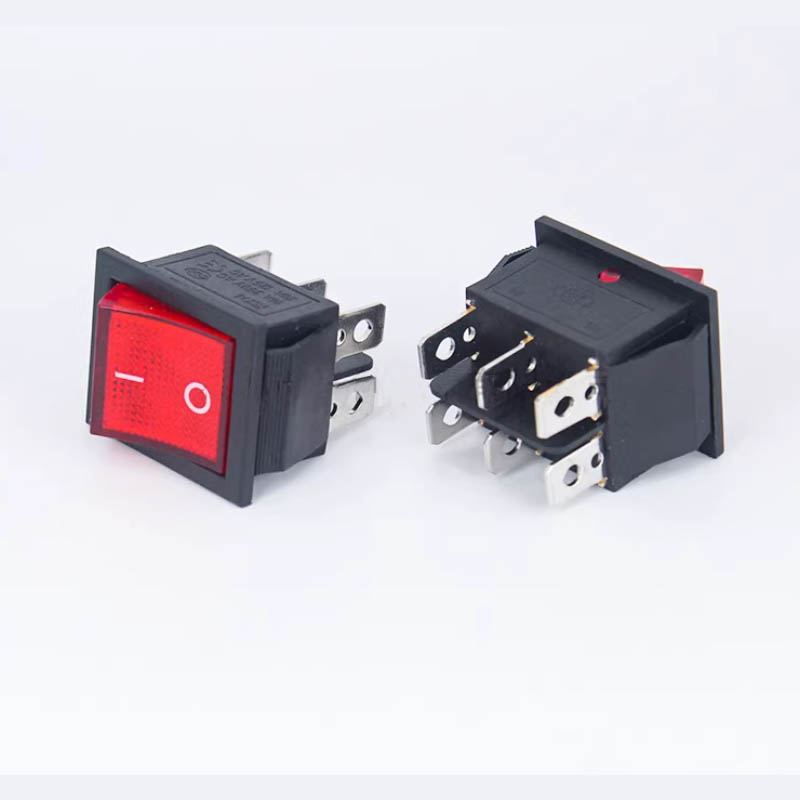

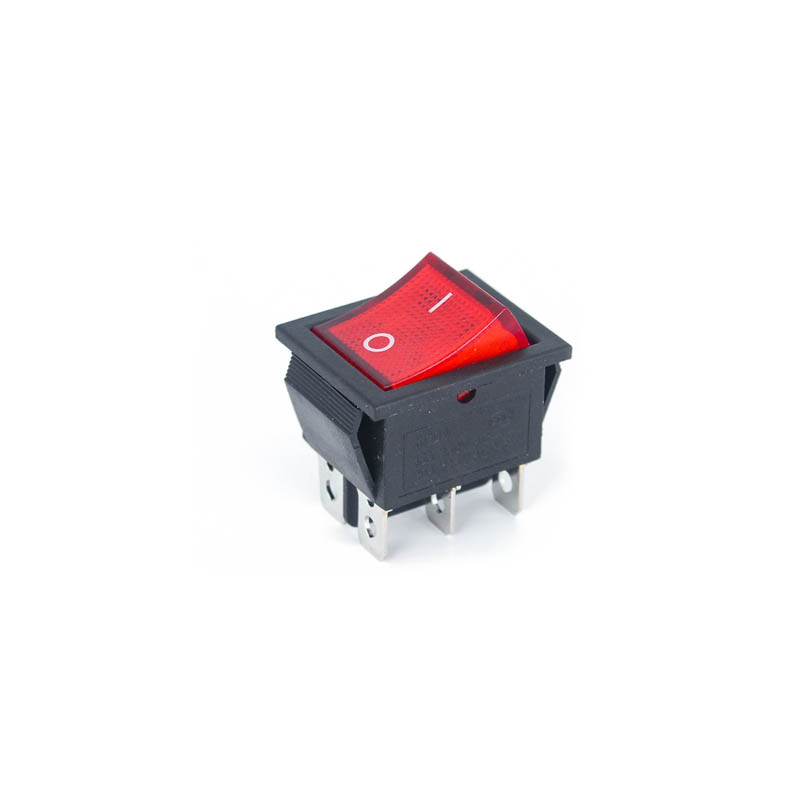

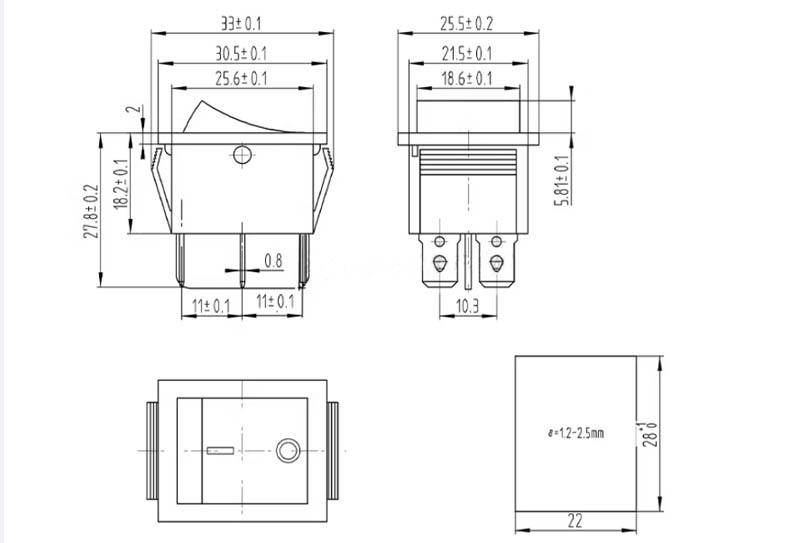

Ship-Shaped Switch KCD4-201 6-pin Two-Position Power Switch 30.5MM x 25.5MM Pure Copper with Capacity of 20A/250V

Rated current and voltage: 20A 250VAC
Insulation resistance > 100MΩ
Contact resistance < 50m2 Dielectric strength (between electrodes) > 1500VAC/min
(Electrode to outer casing > 3750VAC/min)
Electrical life > 10* cycles
Environmental temperature 25 – 785
