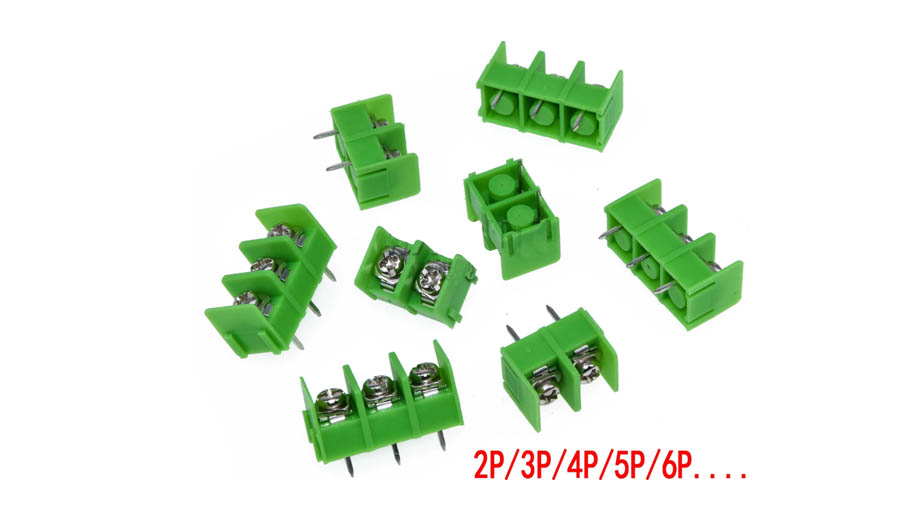

Product Name:KF8500 8.5mm Terminal Block Barrier Screws
Product spacing:8.5mm

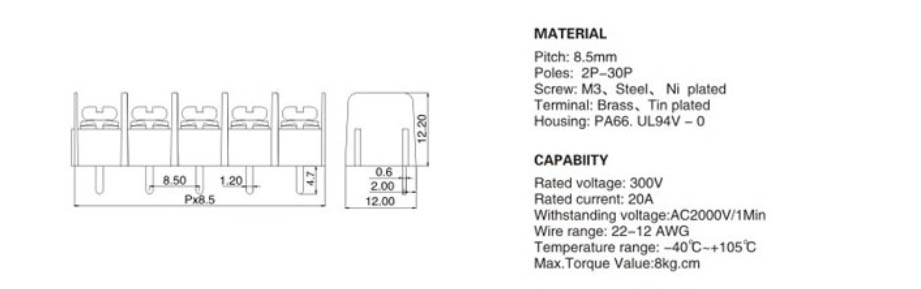

MATERIAL
Pitch: 8.5mm
Poles: 2P-30P
Screw: M3, Steel, Ni plated
Terminal: Brass, Tin plated
Housing: PA66. UL94V-0
CAPABIITY
Rated voltage: 300V
Rated current: 20A
Withstanding voltage:AC2000V/1Min
Wire range: 22-12 AWG
Temperature range:-40℃-+105℃
Max.Torque Value:8kg.cm
