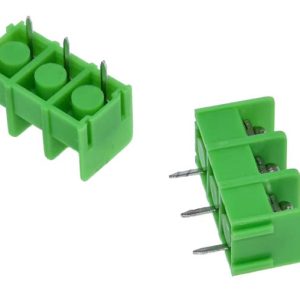

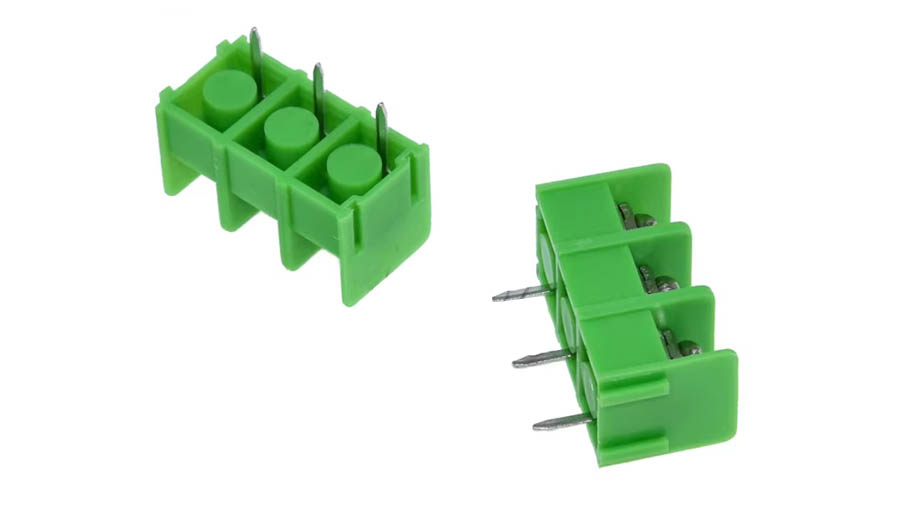

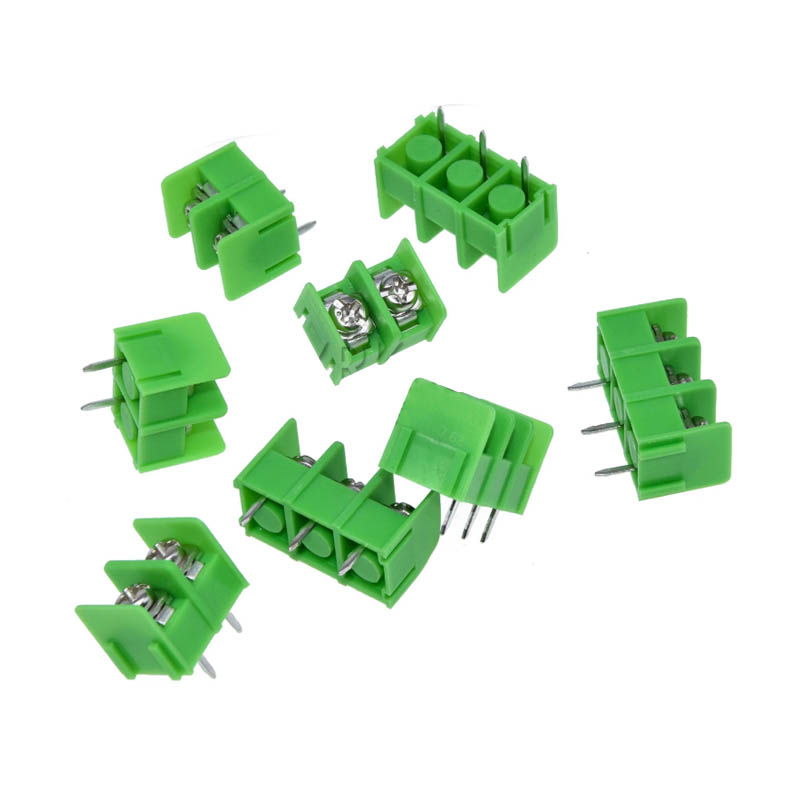

Product Name:KF762 7.62mm Terminal Block
Product spacing:7.62mm

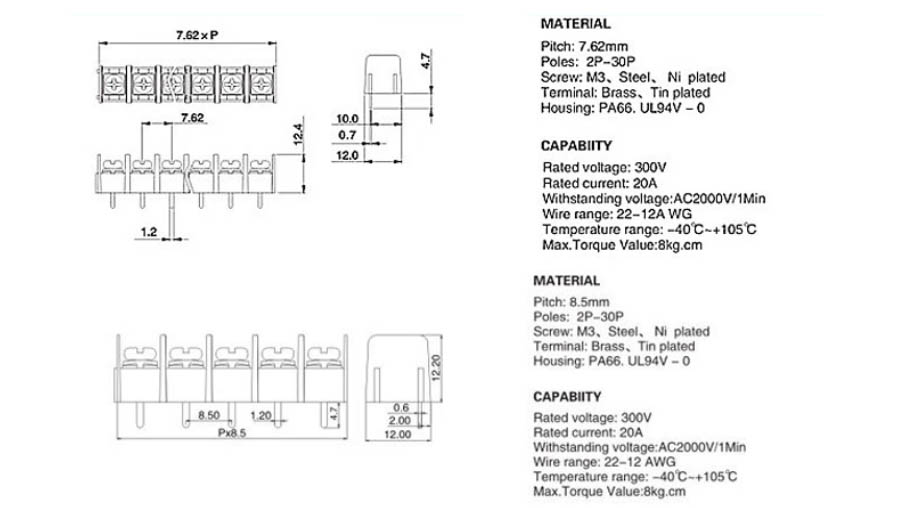

MATERIAL
Pitch: 7.62mm
Poles: 2P-30P
Screw: M3, Steel, Ni plated
Terminal: Brass, Tin plated
Housing: PA66. UL94V-0
CAPABIITY
Rated voltage: 300V
Rated current: 20A
With standing voltage:AC2000V/1Min
Wire range: 22-12A WG
Temperature range:-40℃-+105℃
Max.Torque Value:8kg.cm
MATERIAL Pitch: 8.5mm
Poles: 2P-30P
Screw: M3, Steel, Ni plated
Terminal: Brass, Tin plated
Housing: PA66. UL94V-0
CAPABIITY Rated voltage: 300V
Rated current: 20A
Withstanding voltage:AC2000V/1Min
Wire range: 22-12 AWG
Temperature range:-40℃-+105℃
Max.Torque Value:8kg.cm
Contact me and I will customize it according to your requirements~
