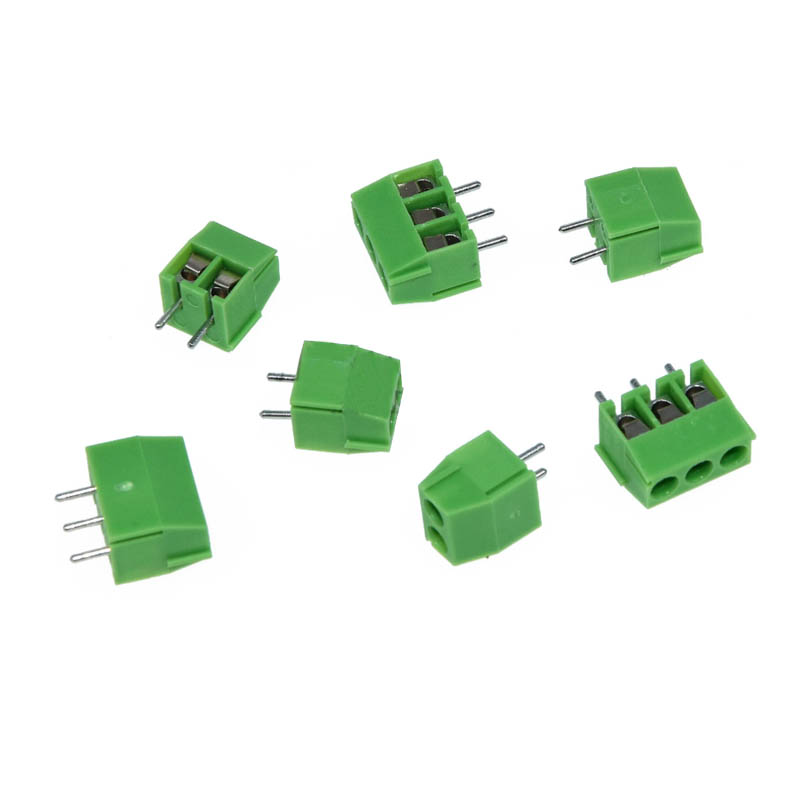

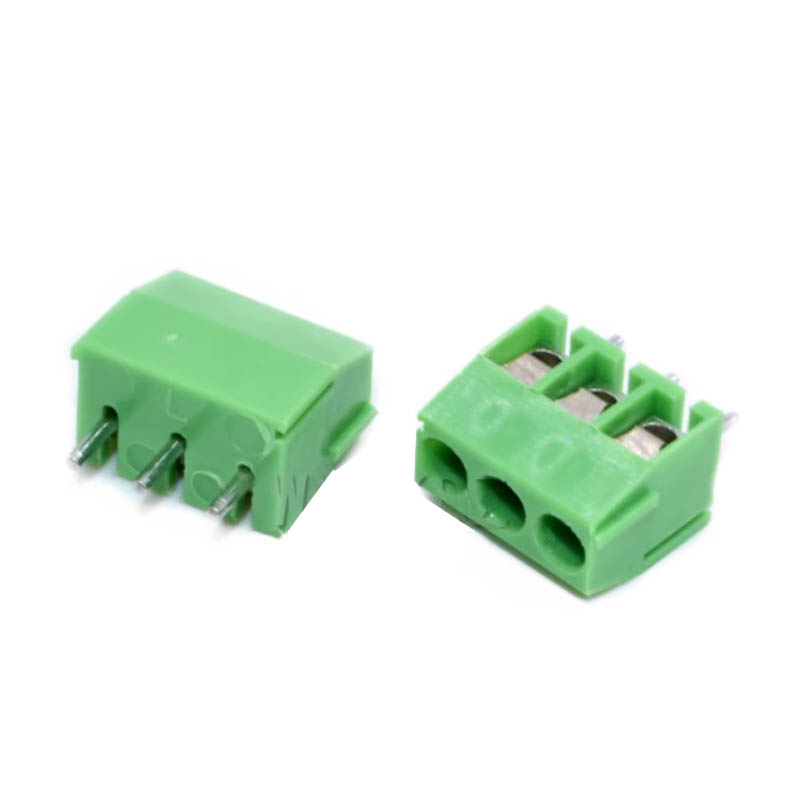

KF350 3.5mm Terminal Block Screws and PCB Terminals for 2P/3P/4P green can assembled

Product Name:KF350 3.5mm Terminal Block
Product spacing:3.5mm

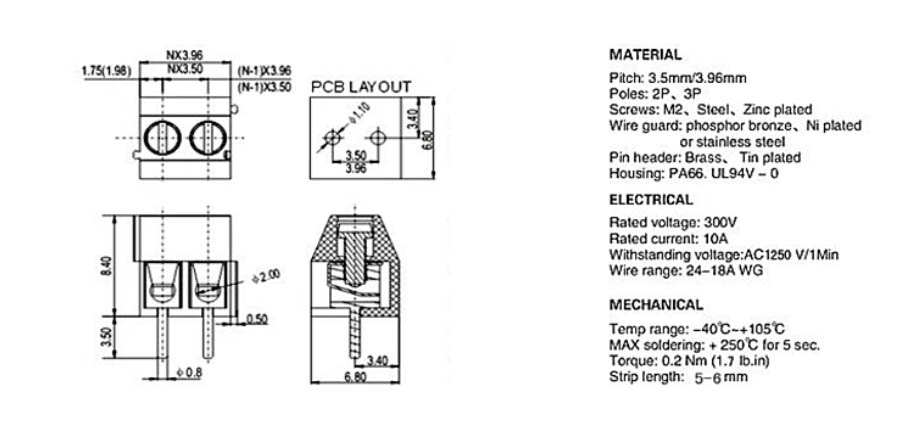

MATERIAL
Pitch: 3.5mm/3.96mm
Poles: 2P, 3P
Screws: M2, Steel, Zinc plated
Wire guard: phosphor bronze, Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PA66. UL94V-0
ELECTRICAL
Rated voltage: 300V
Rated current: 10A
Withstanding voltage:AC1250 V/1Min
Wire range: 24-18A WG
MECHANICAL
Temp range:-40℃-+105℃
MAX soldering:+250℃ for 5 sec.
Torque: 0.2 Nm (1.7 Ib.in)
Strip length: 5-6 mm
