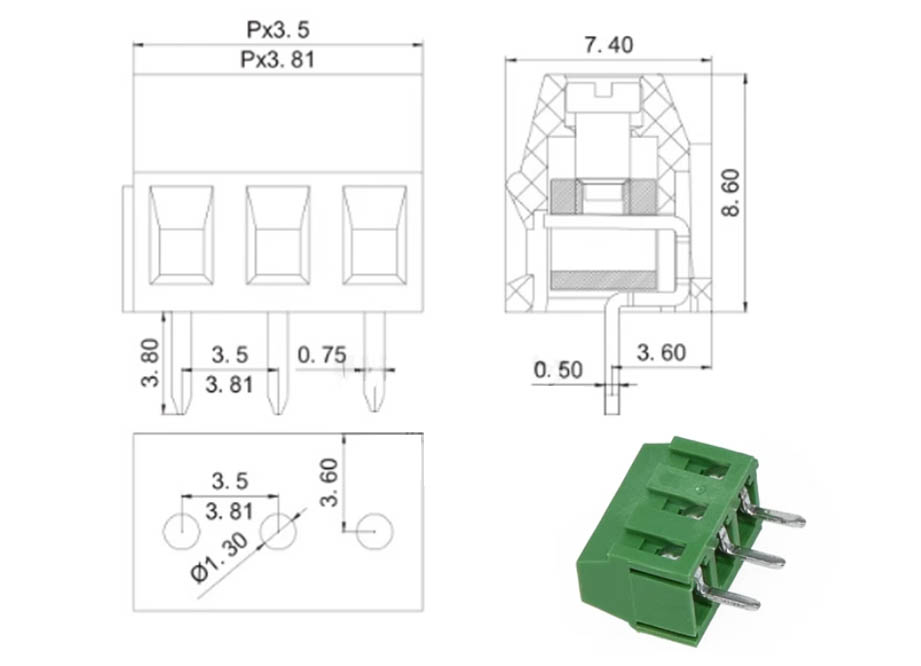

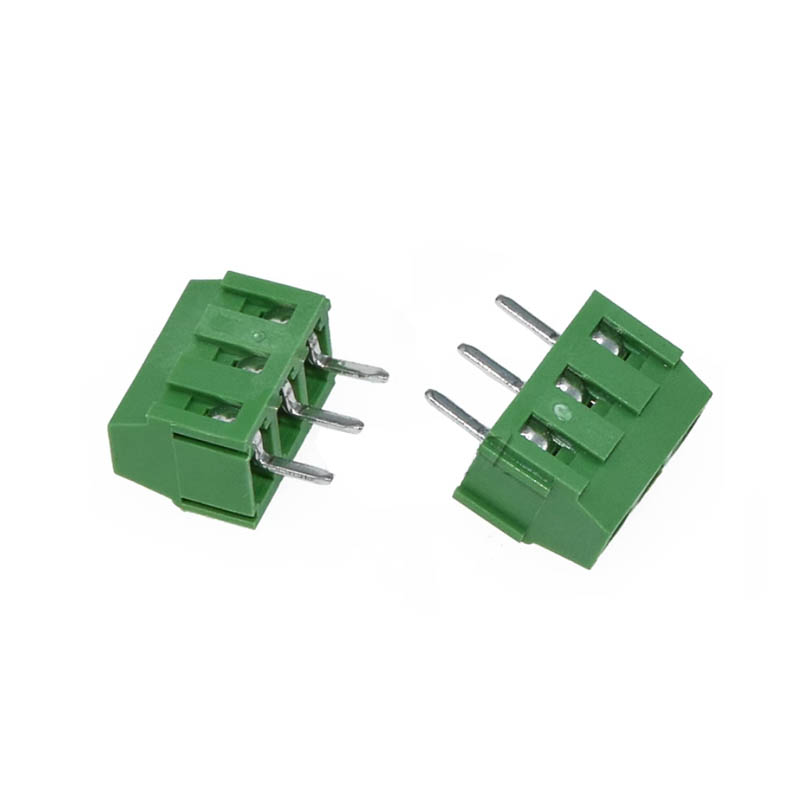

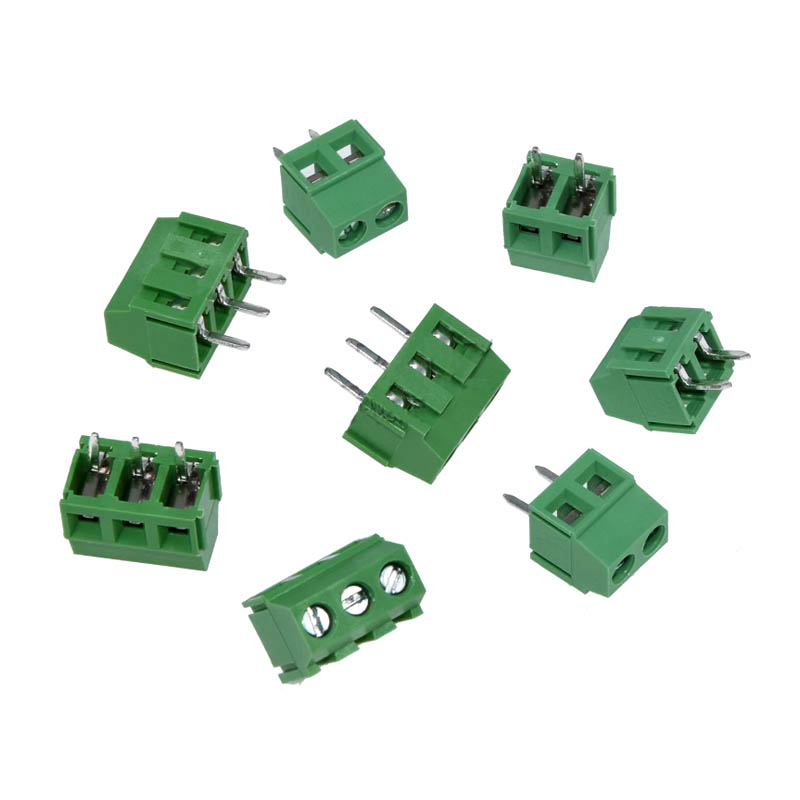

Product Name:KF128 3.81mm Terminal Block
Product spacing:3.81mm
Rated current: 8A
Applicable wire gauge range: 28 – 16AWG
Rated Voltage: 300V
Suggested stripping length: 7 – 8 mm
Withstand voltage: 1600V/1 minute
Screw/Torque: M2/0.2
Instantaneous temperature: +200℃ for 5 seconds
Conductive material: Copper alloy with nickel plating
Temperature range: -30℃ to +105℃
Molded part: PA66 UL940V-0
Contact me and I will customize it according to your requirements~
