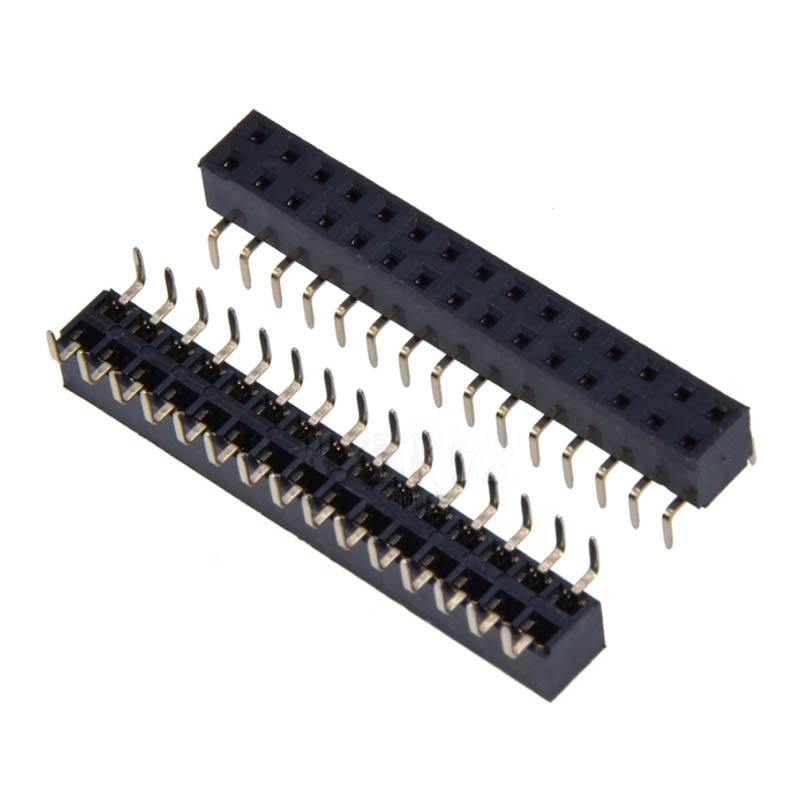

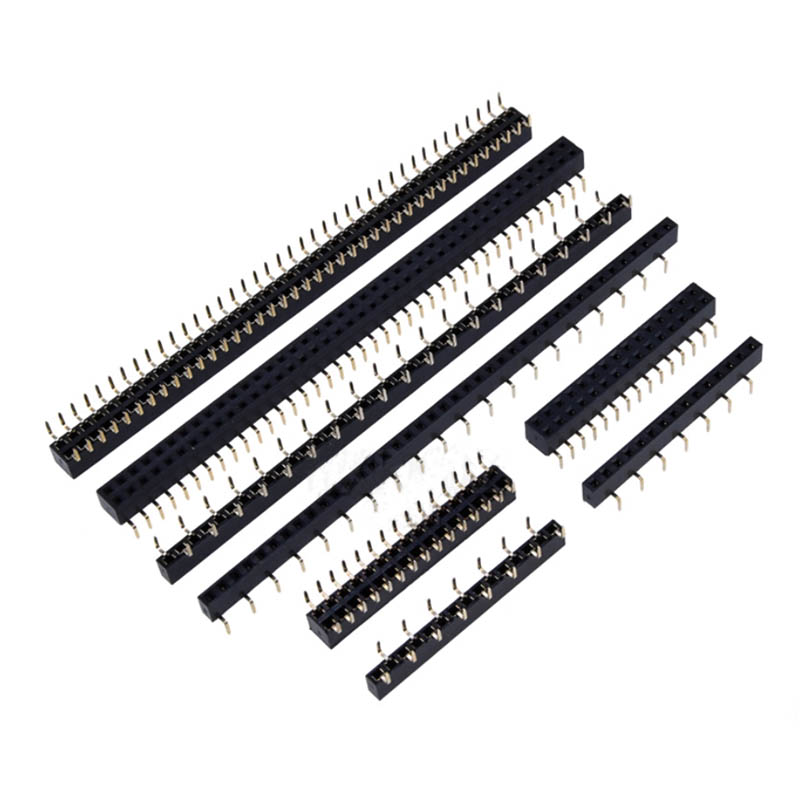

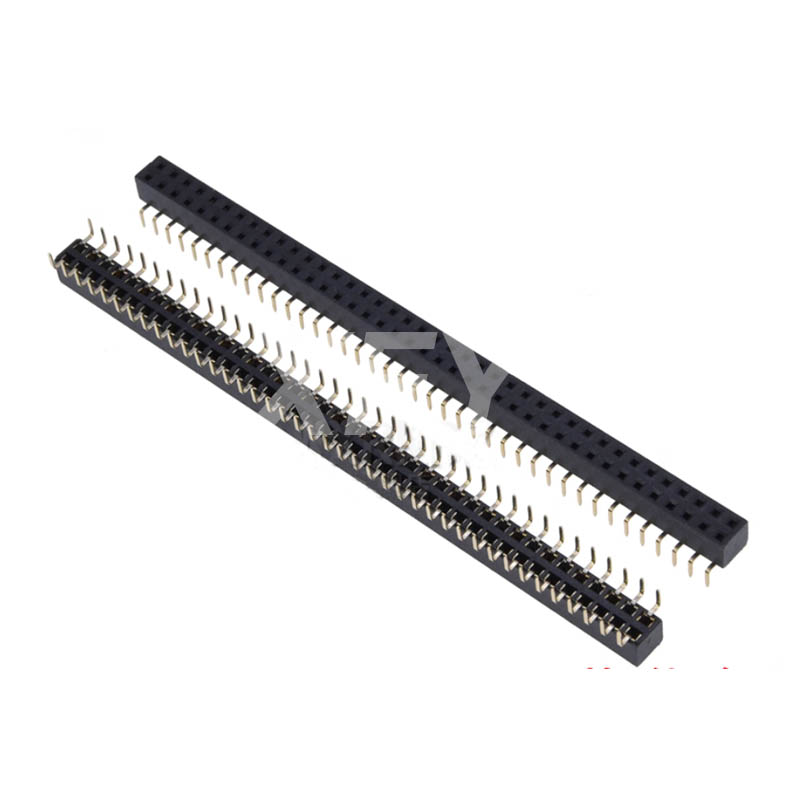

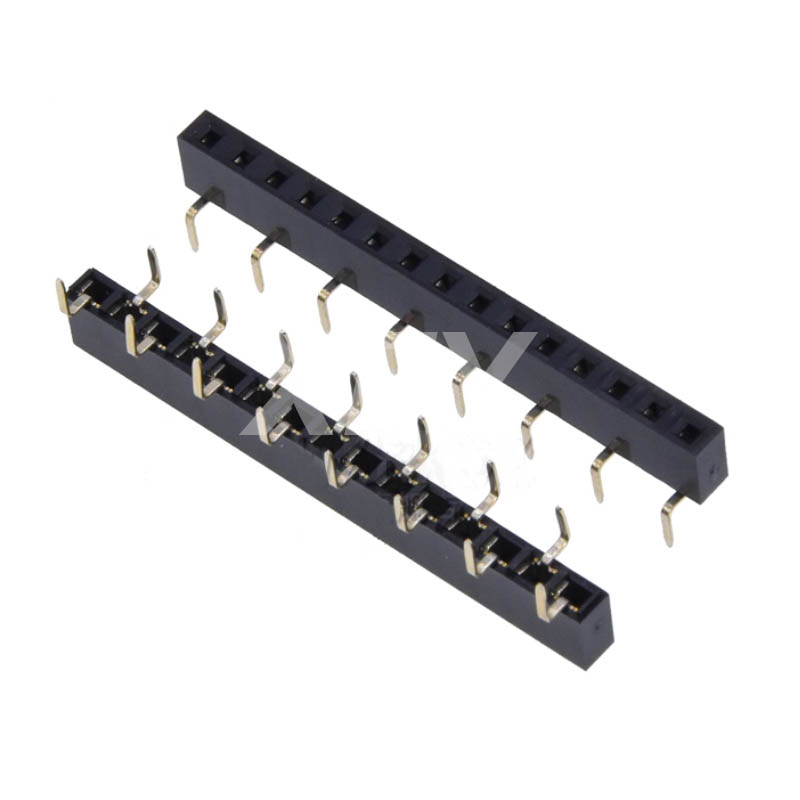

Product Name: 2.54mm Single/Double Bent Foot Pin Header
Product spacing: 2.54mm
NOTES:
Voltage Rating:250V AC/DC
Current Rating:3.0A AC/DC
Dielectric Withstand Voltage:500V AC/minute
Contact Voltage:20ΜΩ Max.
Insulation Voltage:1000MΩ Min
Operation temperature:-40°C to +105° C
Insulator Material:Polyester. UL94V-0
Contact Material:Brass
Contact Plating:AuorSn Plated on Nickel Overall
1 x 15P Plastic, Height 5.0 mm, Foot Width 5.0 mm
2 x 15P Plastic, Height 5.0 mm, Foot Width 7.62 mm
2 x 40P Plastic, Height 5.0 mm, Foot Width 7.62 mm
Contact me and I will customize it according to your requirements~
Whatsapp: +86 17197601206
