Rated power consumption: 0.25w
2. Nominal resistance range: 100Ω – 2MΩ
3. Resistance tolerance deviation: ±10%
4. Resistance Temperature Coefficient: TCR ≤ ±250 at 0 – 6°C
5. Resistance Body’s Maximum Voltage: 315V direct current or effective value of alternating current
6. Withstand Voltage (peak voltage of alternating current with frequency ranging from 40 to 60Hz) 7. At normal atmospheric pressure: 600V
8. Under a low pressure of 8.5 KPa (85 mbar): 450V
9. Climate category: 55/125/04
10. Total mechanical travel: 240 ± 10°
11. Stability level: 10%
12. Starting torque: ≤ 35 mN.m 13. Load-bearing wear resistance cycles: 200 cycles

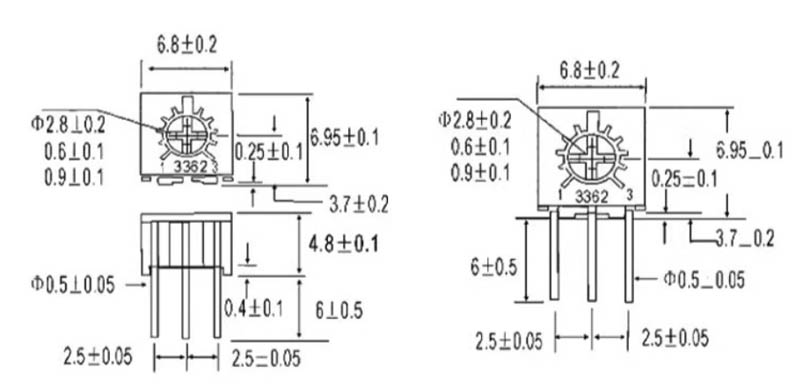

14. Installation method: Insert the output terminals of the potentiometer into the holes on the printed circuit board, press it firmly, and fix it with soldering.
Contact me and I will customize it according to your requirements~
Whatsapp: +86 17197601206
