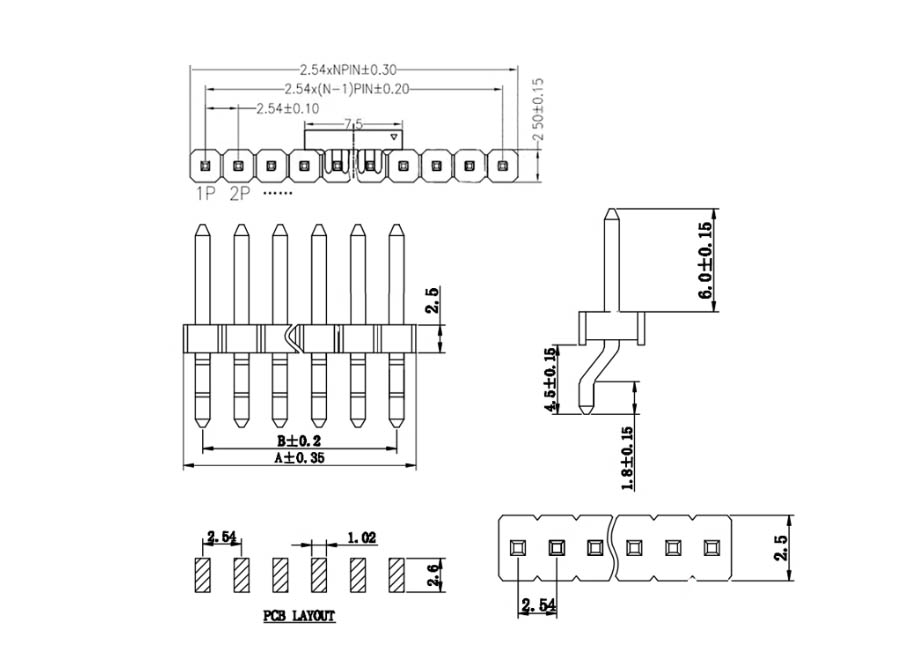

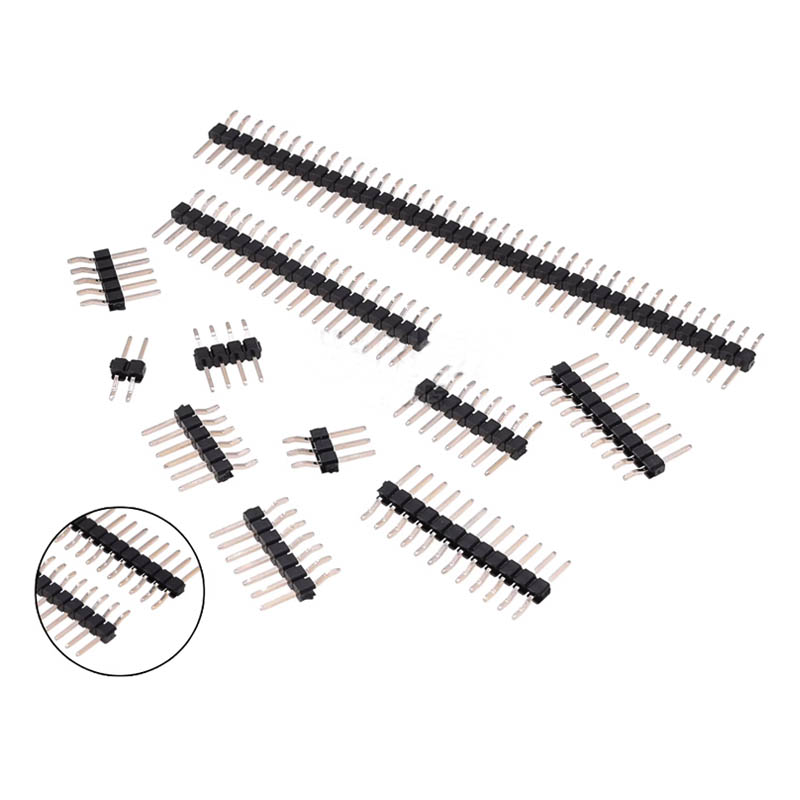

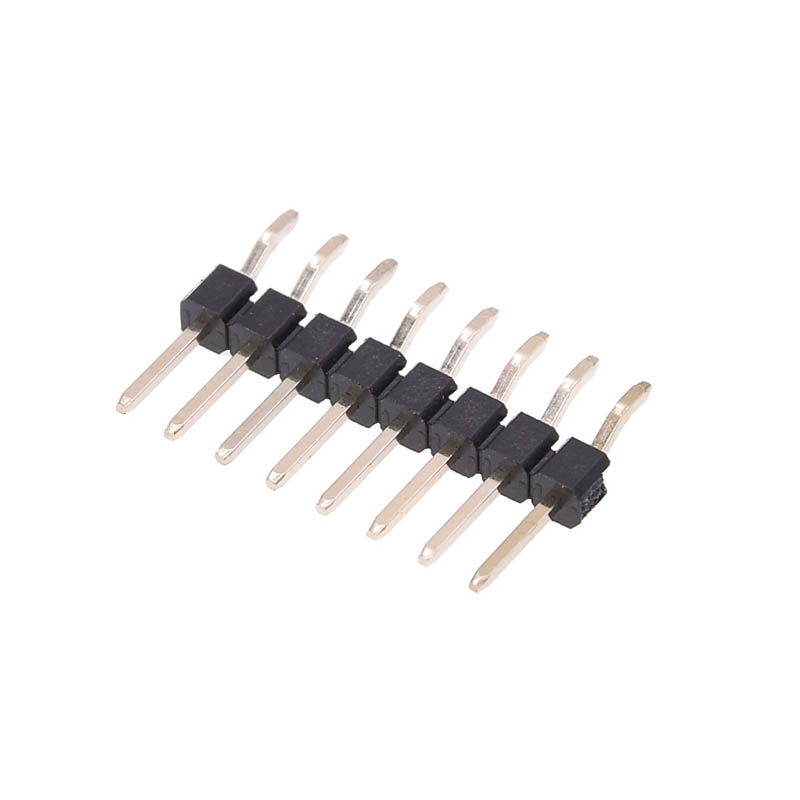

Product Name: 2.54mm Single Row Pins Horizontal SMT 1x2p-40p Pin Header
Product spacing: 2.54mm
NOTES:
Voltage Rating:250V AC/DC
Current Rating:3.0A AC/DC
Dielectric Withstand Voltage:500V AC/minute
Contact Voltage:20ΜΩ Max.
Insulation Voltage:1000MΩ Min
Operation temperature:-40°C to +105° C
Insulator Material:Polyester. UL94V-0
Contact Material:Brass
Contact Plating:AuorSn Plated on Nickel Overall
Contact me and I will customize it according to your requirements~
