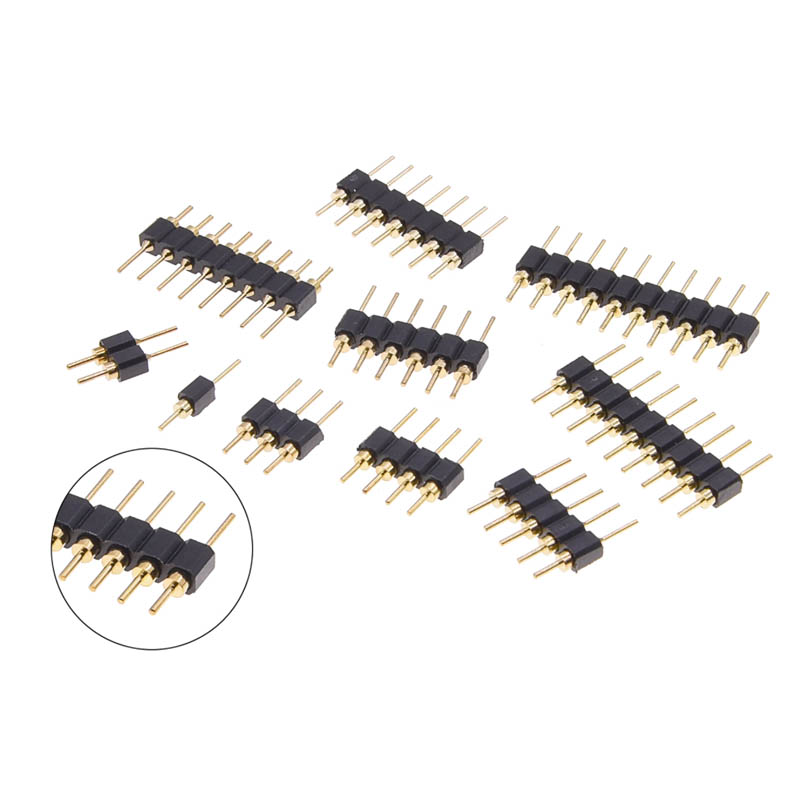

Product Name: 2.54mm Round Pin Header 1x1p 2p 3p 4p 1x40p Glod
Product spacing: 2.54mm1.27mm 2.0mm
NOTES:
Voltage Rating:250V AC/DC
Current Rating:3.0A AC/DC
Dielectric Withstand Voltage:500V AC/minute
Contact Voltage:20ΜΩ Max.
Insulation Voltage:1000MΩ Min
Operation temperature:-40°C to +105° C
Insulator Material:Polyester. UL94V-0
Contact Material:Brass
Contact Plating:AuorSn Plated on Nickel Overall
Contact me and I will customize it according to your requirements~
Whatsapp: +86 17197601206
