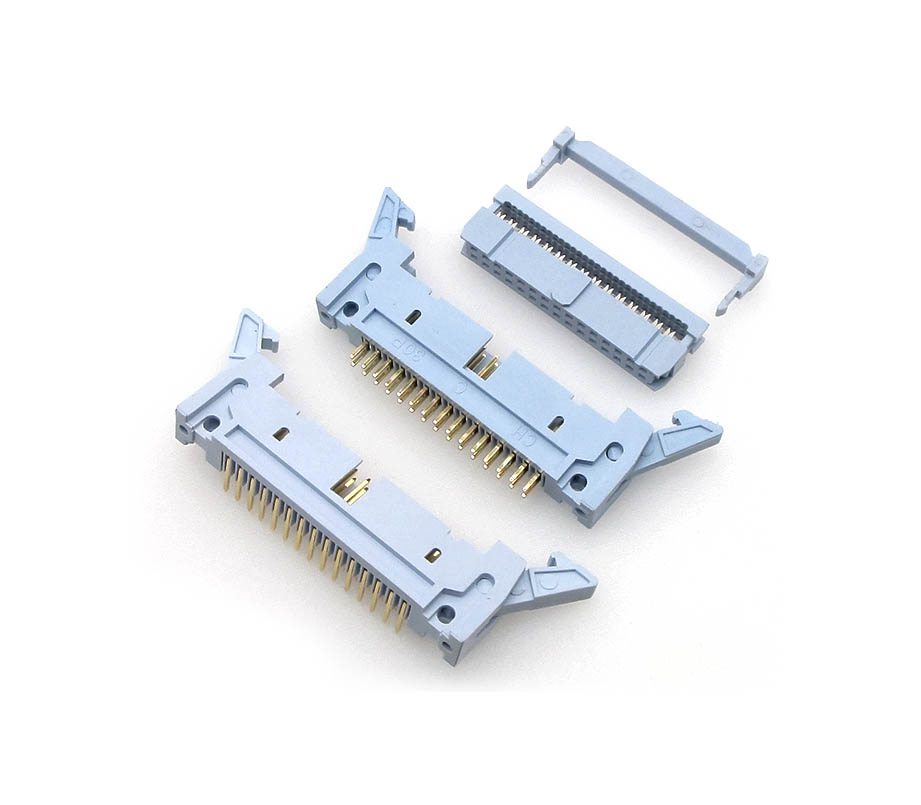

2.54mm 6-64 Pin DC2 IDC Socket Male Straight Pin Ejector Header Grey Connector

Product Name:

2.54mm 6-64 Pin DC2 IDC Socket Male Straight Pin Ejector Header Grey Connector

Product spacing:2.54mm

Rated Current:3.0AMP
Contact Resistance:20mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance: 1000MO Min
Operation Temperature:-40°c to +105°c
Contact Material:Brass
Contact Plating:Au or Sn Over Ni
Insulator Material:Polyester(UL94V-0)
Standard: PBT
Max.Processing Temp: 180℃ for 30-60 seconds (200℃ for 10 seconds)
Note: 6P Without Slot “M” and “N” 8P~12P With Slot “M”,Without Slot “N” 14P-64P With Slot “M” and “N”

Contact me and I will customize it according to your requirements~
